96 Well Plate and Custom Dispensing Tools

Multi Port Manifolds (8-, 12-, 96-, 384- or Custom Spacing Channels) for Microplate Dispensing and Washing

Want to increase sample preparation throughput and maximize laboratory productivity – but have no capital budget for either the purchase or maintenance of a robotic liquid handler?

All our manifolds can be used to dispense liquid as well as to aspirate and wash supernant

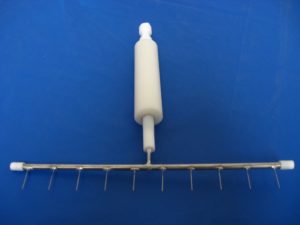

8-Channel Manifold (1102)

Stainless Steel Manifold / Stream Splitter with 96 well microplate spacing (9mm):

  cards

Price: $240 (USD)

Shipping

U.S. and Canada $40
International $80

12-Channel Manifold (1103)

Stainless Steel Manifold / Stream Splitter with 96 well microplate spacing  ( 9mm )

cards

Price: $280 (USD)

Shipping

U.S. and Canada $40
International $90

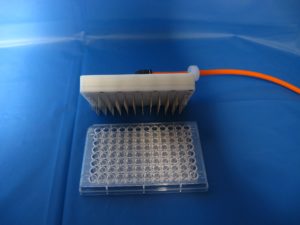

96-Channel Manifold (1104)

cards
Price: $1050 (USD)

Shipping

U.S. and Canada $50
International $120

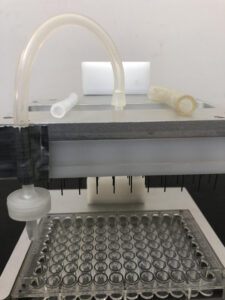

Aluminum Support Stand

An aluminum support stand (see picture below) that can not only hold the 96 channel manifold in fixed position but also maneuver up/down plate movements easier and precisely.



cards

Price: $200 (USD)

Shipping

U.S. and Canada $60
International $90

These multi-channel (8, 12, 96, and 384) manifolds are used for rapid population of 96 or 384 well plates for ELISA, Tissue Typing, and other applications.

Used in conjunction with bottle top dispenser, these manifolds enable aspiration from a reservoir and precise dispensing of volumes as low as 25 microliters per well.

A cleaning wire is provided to remove residue buildup inside the channels.

Standard 96 Channel Manifold is made of two polypropylene plates.

Upon request, Teflon plates can be substituted at an extra cost to dispense more corrosive acid and basic solutions, or chlorinated solution.

Customized Manifolds (# of channels / spacing between channels)  are definitely available per request.

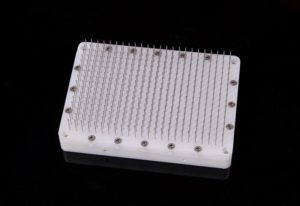

384-Channel Manifold (1200)

cards

Price: Inquire the improved model

Shipping

U.S. and Canada $60
International $120

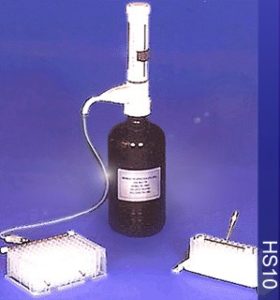

A complete multi channel dispensing system is composed of four components:

BT Dispensing Pump
1 L Glass Bottle
Stainless Steel Manifold (8 or 12 Channel)
Liquid Delivery Line

These complete system delivers liquid into 8-, 12-, or 96-wells simultaneously and evenly.

Repeats of incorrectly filled plates and filling errors are significantly reduced.

Accuracy and precision are 97% and less than 3%, respectively.

Multi Solvent Switching Manifold is also available in order to eliminate the need to purchase several expensive bottle top dispensers.

Moreover, we can design and build  a support stand that not only saves laboratory bench space but also holds the 96 channel manifold in a fixed position.

Automated Bottle Top Dispenser

Deliver volume range     0.1 – 99.9 ml
Fixed and single volume dispensing or multi-volume dispensing
Recirculation function minimizes waste when priming
Corded remote control
Multiple adapters includes to fit all common laboratory bottles (GL25, GL28, GL32, GL38 & S40 mm)

Please call us or send us an email

 info@jyh-scientific.com

 for pricing and availability.
